Structural drawings |
Designation |
Shaft Diameter |

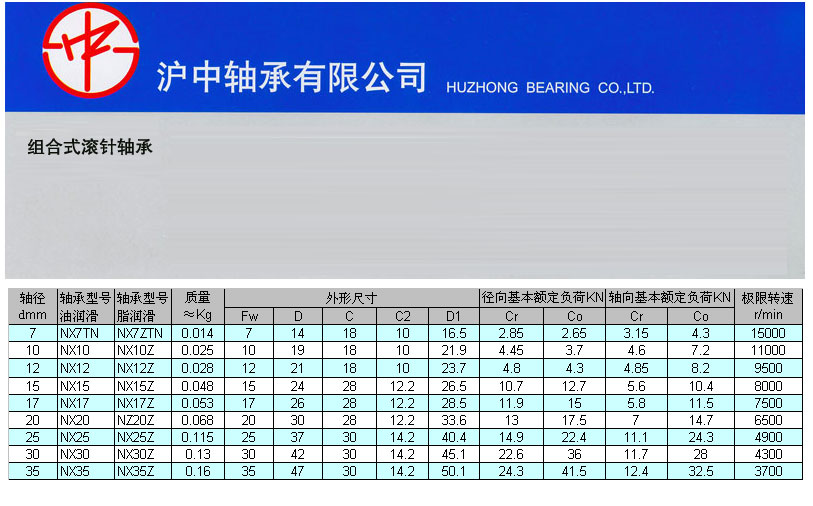

No inner ring needle - full thrust with ball bearings |
|
NX
NX...Z Cover holes without lubrication |
Φ7-Φ35 |

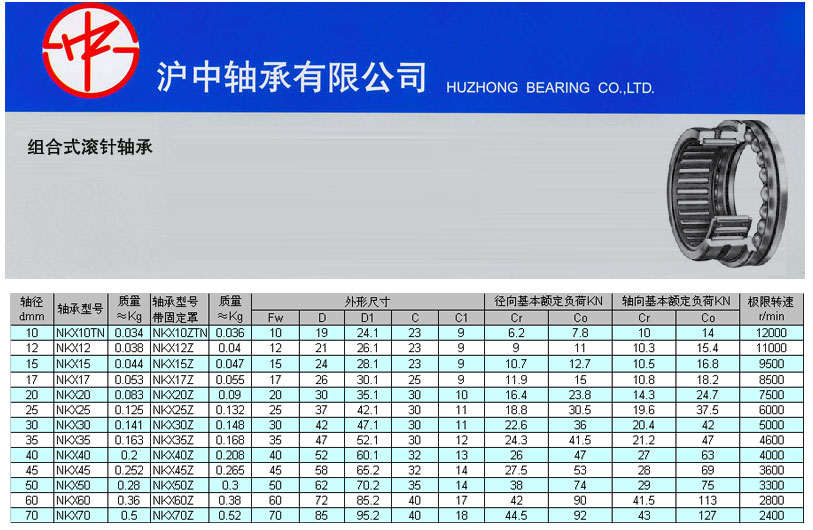

No inner ring needle - full thrust with ball bearings |
|
NKX
NKX...Z带端盖 |
Φ10-Φ70 |

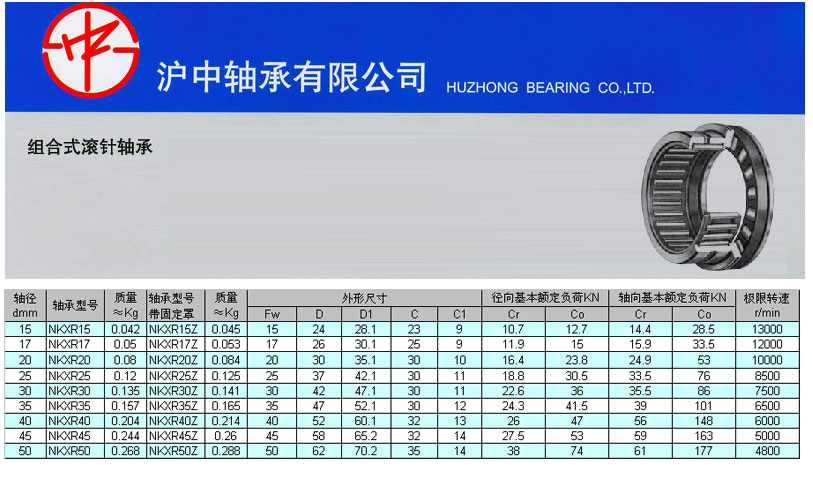

No inner ring needle - thrust cylindrical roller bearings |
|
NKXR
NKXR...Z Cover with |
Φ15-Φ50 |

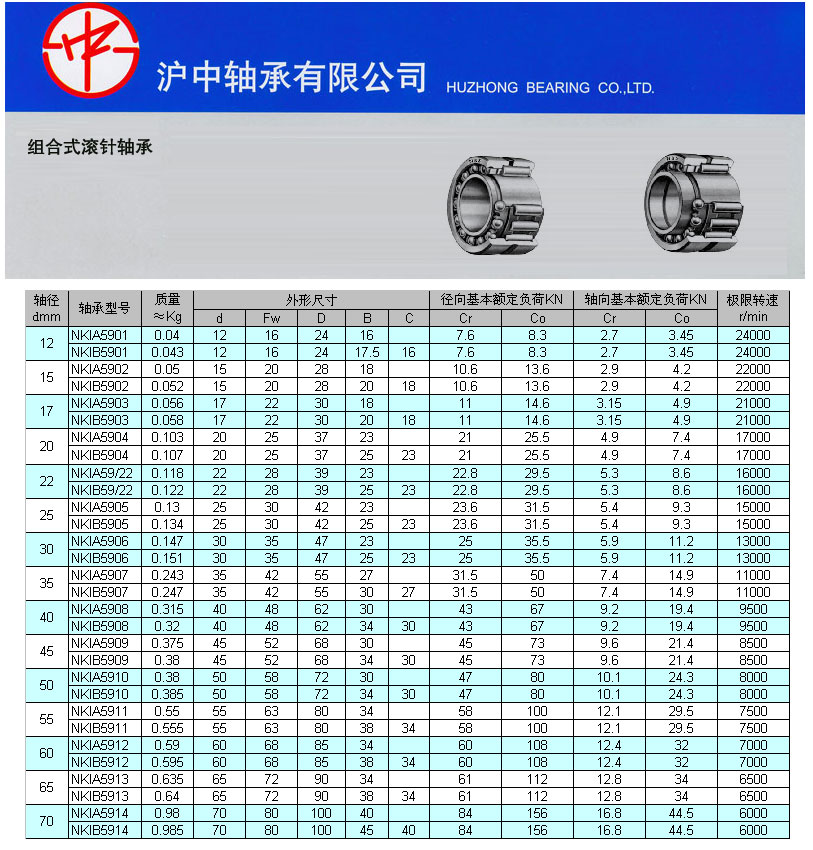

A needle inner ring - angular contact ball bearings |
《Click Here》 |
NKIA |
Φ12-Φ70 |
With two separate inner ring needle - angular contact ball bearings |
《Click Here》 |
NKIB |
Φ12-Φ70 |
